Heavy Duty Wooden box

€232.69

Tax included

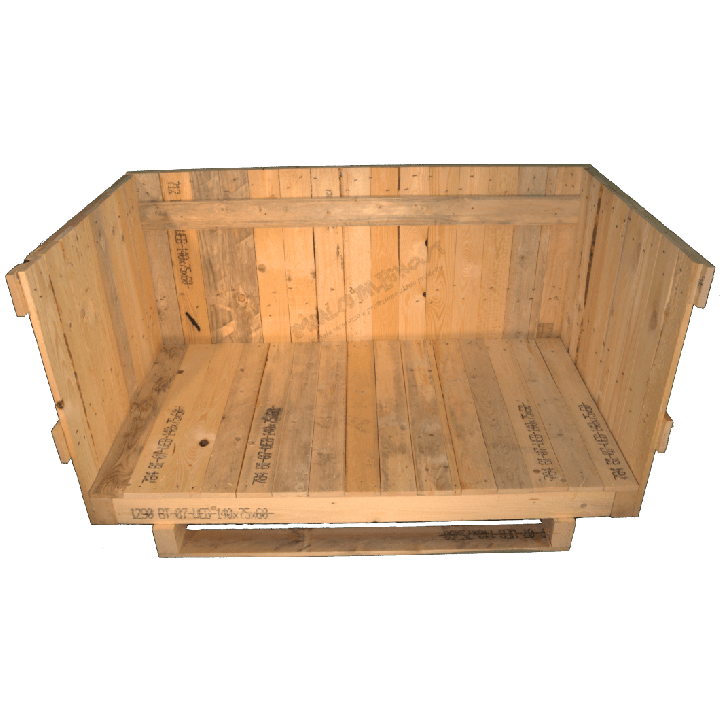

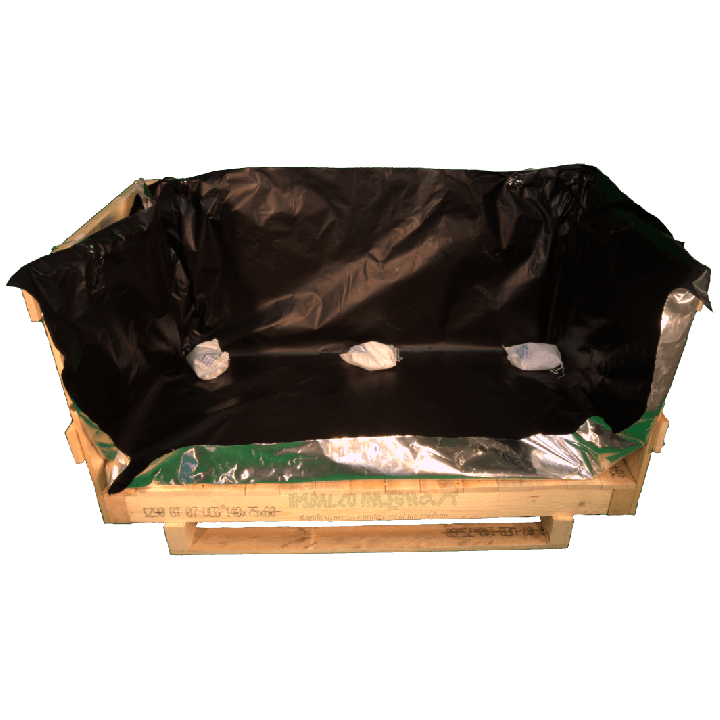

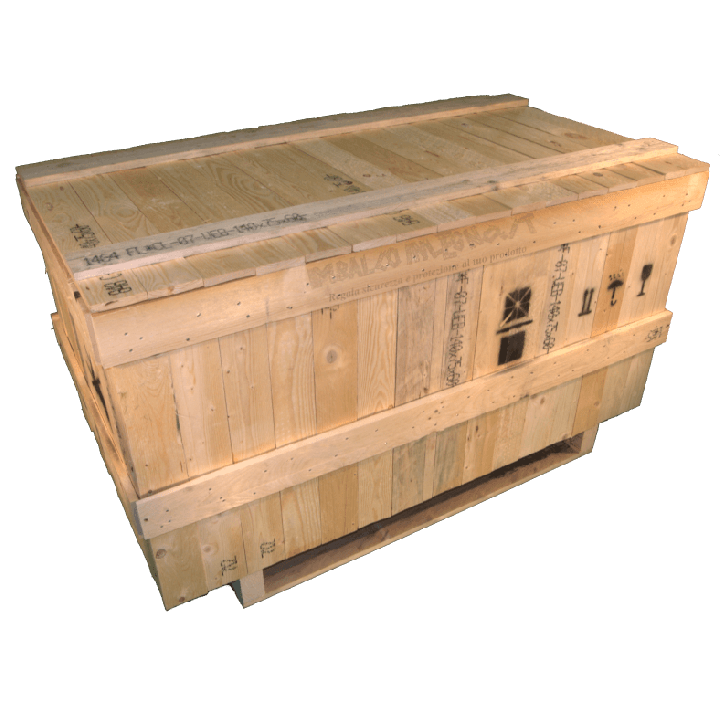

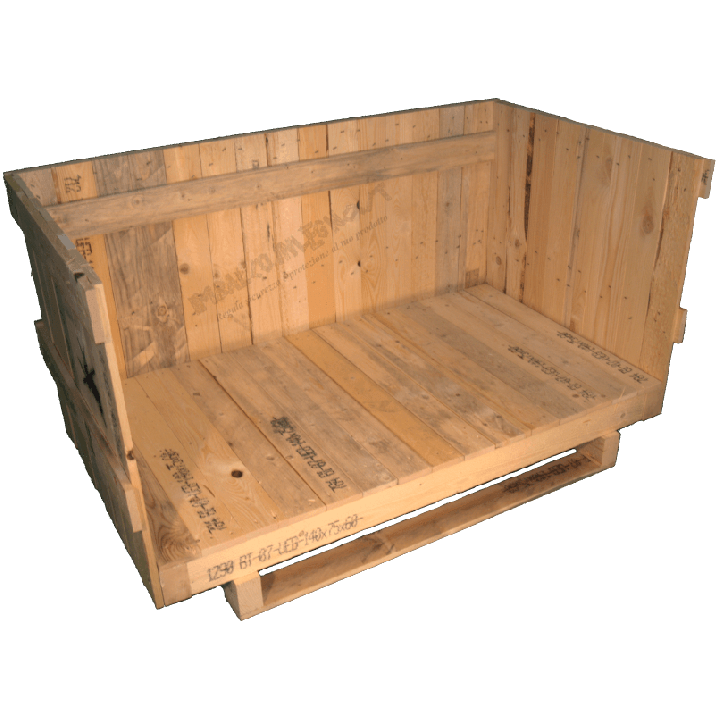

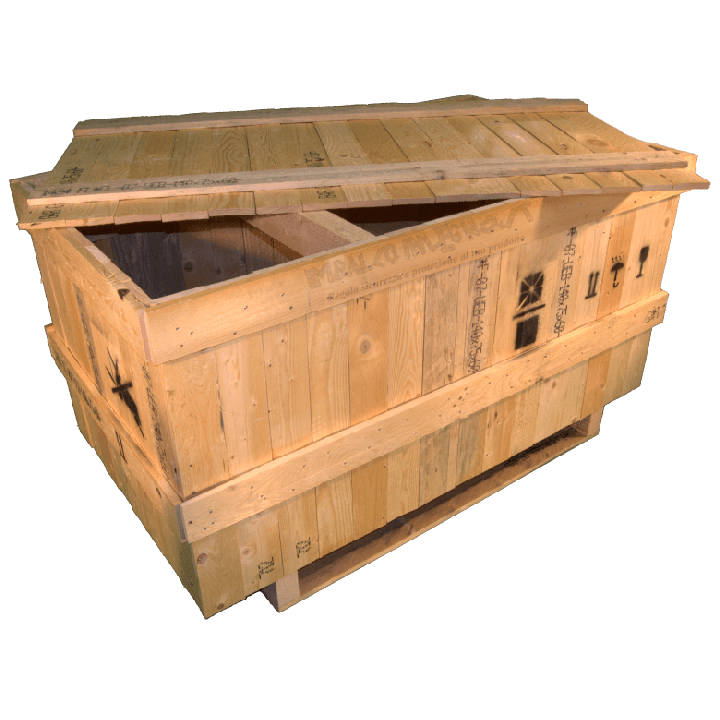

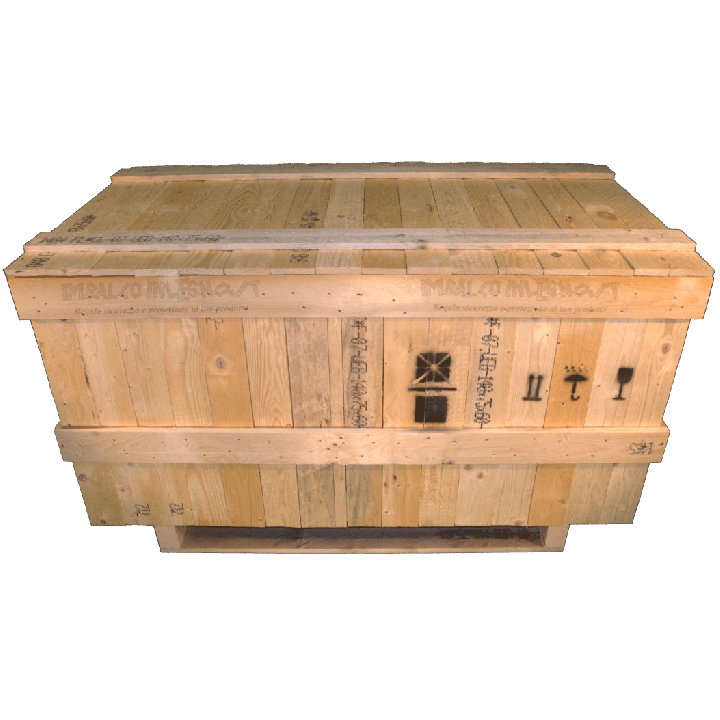

Heavy Duty Wooden box in customizable sizes.

Quantity

	Min.	Max.
Inner usefull width	40cm	235cm
Inner usefull height	10cm	225cm
Inner usefull length	49cm	490cm

Description
Product Details

Heavy Duty Wooden box customisable in dimensions (length, width and hight) and strength (small, medium, large, extra), possibility of ispm15 fao treatment for exportation and any indelible black ink markings with a maximum of 45 characters. The pallet can also be realized in a planed version, suitable for furnishing. We produce all wooden boxes we sell.

Reference W-CFRA

In stock 9999990 Items

Product customization:

click here for guidance on how to order.

Dimensioni:

120x40x20
140x75x60 - photo
customized

How to insert the measures properly:

Attention: the inserted measurements are INTERNAL measurements and are expressed in centimeters, in the note of every product are indicated the cm to be added to get the EXTERNAL measurements.

Enter here the quantity:

Quantity:

(An order of 2 pieces has a discount of 2% - of 5 pieces of 5% - of 10 pieces of 7% - of 50 pieces of 10% - depending on the measures)

Enter here the length:

Inner usefull length cm

(Measure must be expressed in cm - min 120cm/max 490cm)

Enter here the width:

Inner usefull width cm

(Measure must be expressed in cm - min 40cm/max 235cm)

Enter here the height:

Inner usefull height cm

(Measure must be expressed in cm - min 20cm/max 225cm)

Strength:

Section of the used material - strenght of the box.

Medium
Large
Extra

Assembled:

Completely finished or with only the six sides preassembled.

Assembled
Not assembled (The assembly is done by the customer)

Warning: If you select "not assembled", the assembly is carried by the customer!

Forklift ready:

Bottom with a pallet below or not.

Forklift ready
Not forklift ready

Planed boards:

Select if boards must be planed or not (recommended for furnishing).

Not planed
Planed

Galvanized nails:

Select if nails must be galvanized or not (recommended for furnishing).

Not galvanized
Galvanized

Marking:

Select if boards must be marked or not.

Product measures
Personalised

Marking Text:

Input the marking text (max 45 characters - special characters are not allowed).

ISPM15:

ISPM15 heat sterilization treatment for exportation to non-EU.

Not treated
Treated

Config Description

Weight:: Kg

Add to Cart

Main manufacturing characteristics:

- Type of material:

- The wooden boxes are made of European dried fir wood (humidity max 20%);
- Medium version: cover boards 9,5x1,5cm - pallets and structural boards 9,5x1,8cm - longitudinal load bearing beam and underbeam 5,5cmx9h;
- Large version: cover boards 9,5x1,5cm - pallets and structural boards 12x2,2cm - longitudinal load bearing beam and underbeam 7,5cmx9h
- Extra version: cover boards 9,5x1,8cm - pallets and structural boards 12x2,2cm - longitudinal load bearing beam and underbeam 9,5cmx9,5h
- Extra version - planed: cover boards 9,5x1,8cm - pallets and structural boards 9,5x1,8cm - longitudinal load bearing beam and underbeam 9,5cmx9,5h
- Planed option is limited to the extra version;

- Size limitations:

- Medium version: min 120x40x20h - max 290cmx150x210h;
- Large version: min 120x40x20h - max 490cmx235x225h (carrier limit 290x150x210h);
- Extra: min 120x40x20h - max 490cmx235x225h (carrier limit 290x150x210h);

- Cm to be added to the inserted measures to obtain the external measures of the box:

- Medium version: lenght 7cm - width 10cm - height 24cm (without the pallet below height 14cm);
- Large version: lenght 8cm - width 11cm - height 25cm (without the pallet below height 15cm);
- Extra version: lenght 8cm - width 12cm - height 26cm (without the pallet below height 15cm);
- Version extra-planed: lenght 8cm - width 11cm - height 25cm (without the pallet below height 15cm);

- Indicative weight for model 120cmx80x80h:

- Medium: 75kg;
- Large: 90kg;
- Extra: 100kg;
- Extra-planed: 90kg;

- Indicative static/dynamic carrying capacity for 120cmx80x80h model:

- Medium version: 2000/1000kg;
- Large version: 3000/2000kg;
- Extra version: 4000/3000kg;
- Crates are to be considered not stackable and not superimposeable;
- The dimensions increase involves a decrease more than proportional of the carrying capacity;
- The relative structural rigidity of the contained material, as for example the presence of a bearing metal skid below the product, can also increase considerably the effective range of the carrying capacity;

- ISPM15 treatment for export:

- The treatment is required to export to non-EU countries;
- The treatment consists in an oven high temperature sterilization;
- The price includes sterilization, markings and documentation stating the treatment;

- Pallet marking:

- Marking by inkjet printing with indelible black ink;
- Maximum 45 characters;
- The wording is not available for sizes smaller than 50cm.

Passa al listino industria

Solo prodotti destinati all'imballo, partita iva, prezzo netto, ordine minimo di 300 Euro

Questions

Send us your question

alessio toniolo on 09/20/2016	Question: vorrei sapere la dimensione effettiva della cassa da 43 €. mi sembra che l'altezza di 20 cm sia poco realistica
	Answer: Dimensioni interne 120x40x20 Dimensioni esterne (versione pallettizata) 127x50x44 Dimensioni esterne (versione non pallettizata) 127x50x34
