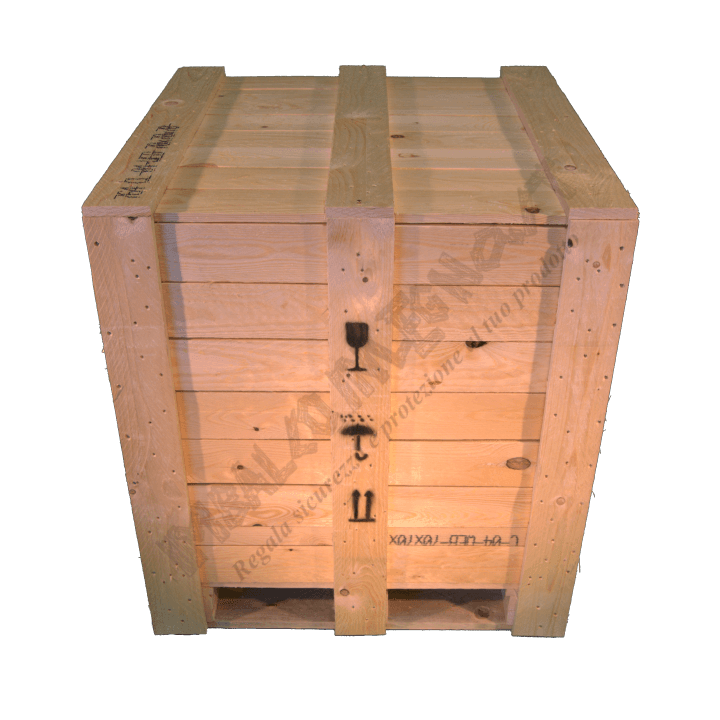

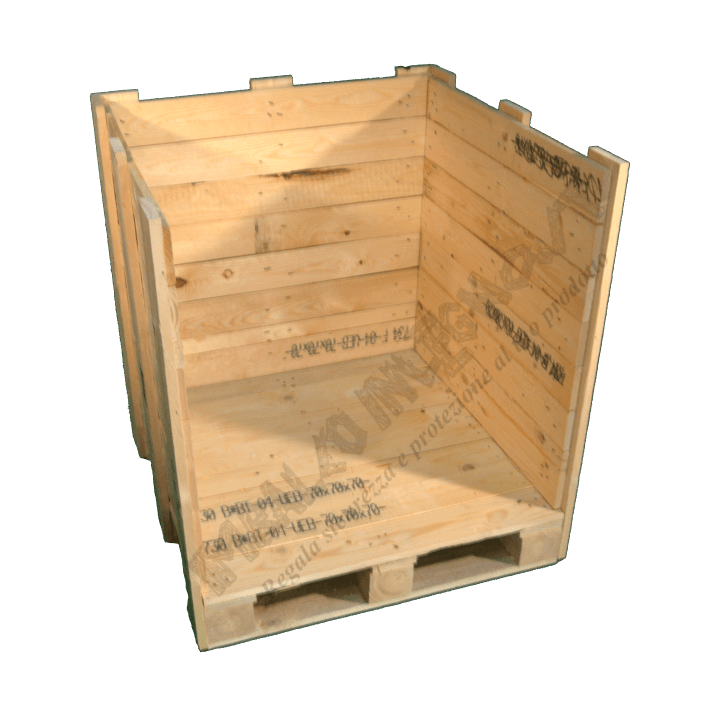

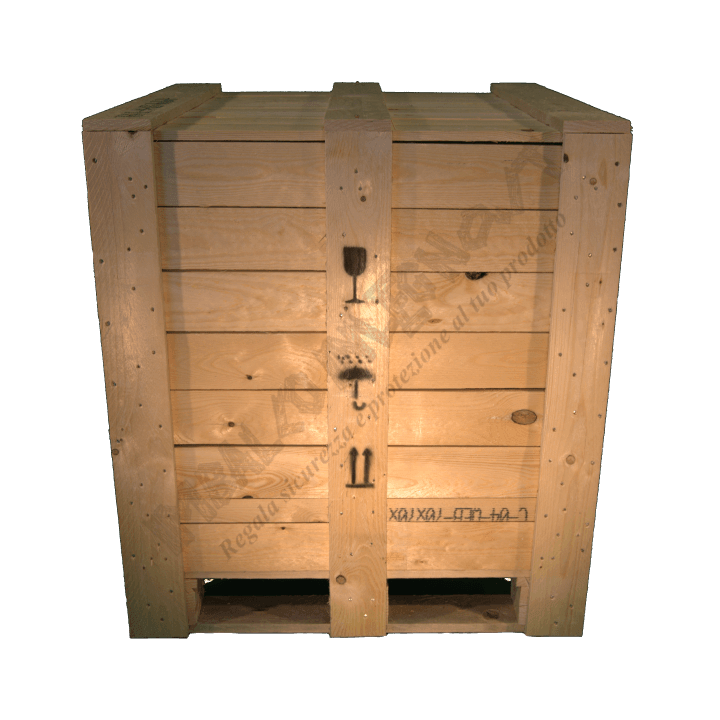

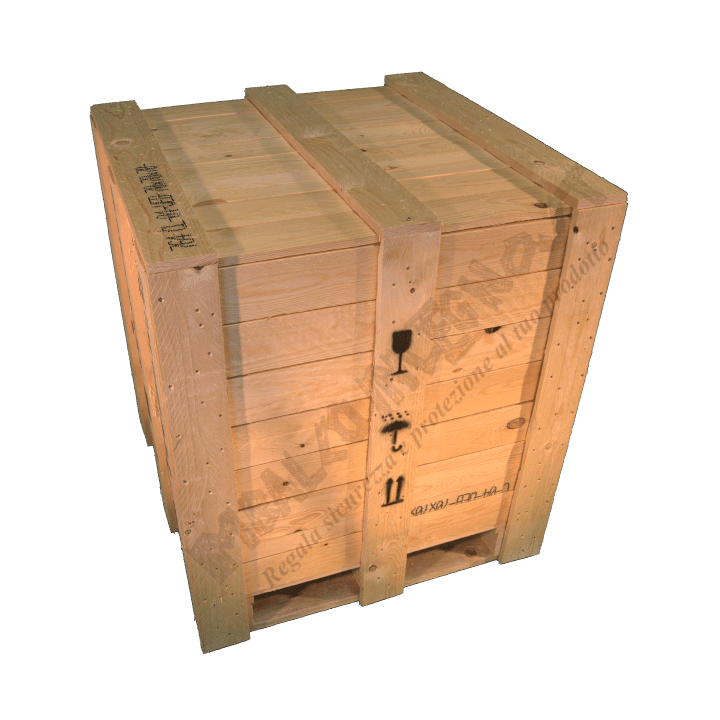

Wooden box

€114.34

Tax included

Wooden box in customizable sizes (lenght, width and hight) and strenght (small, medium, large, extra).

Quantity

	Min.	Max.
Inner usefull width	10cm	150cm
Inner usefull height	10cm	210cm
Inner usefull length	20cm	490cm

Description
Product Details

Wooden box customisable in dimensions (length, width and hight) and strength (small, medium, large, extra), possibility of ispm15 fao treatment for exportation and any indelible black ink markings with a maximum of 25 characters. The pallet can also be realized in a planed version, suitable for furnishing. We produce all wooden boxes we sell.

Reference W-CBPAL

In stock 9999676 Items

Product customization:

click here for guidance on how to order.

Dimensioni:

20x10x10
70x70x70 - photo
114x114x100
customized

How to insert the measures properly:

Attention: the inserted measurements are INTERNAL measurements and are expressed in centimeters, in the note of every product are indicated the cm to be added to get the EXTERNAL measurements.

Enter here the quantity:

Quantity:

(An order of 2 pieces has a discount of 2% - of 5 pieces of 5% - of 10 pieces of 7% - of 50 pieces of 10% - depending on the measures)

Enter here the length:

Inner usefull length cm

(Measure must be expressed in cm - min 20cm/max 490cm)

Enter here the width:

Inner usefull width cm

(Measure must be expressed in cm - min 10cm/max 150cm)

Enter here the height:

Inner usefull height cm

(Measure must be expressed in cm - min 10cm/max 210cm)

Strength:

Section of the used material - strenght of the box.

Small
Medium
Large
Extra

Assembled:

Completely finished or with only the six sides preassembled.

Assembled
Not assembled (The assembly is done by the customer)

Warning: If you select "not assembled", the assembly is carried by the customer!

Forklift ready:

Bottom with a pallet below or not.

Forklift ready
Not forklift ready

coating:

Indicate whether you want that the strips are positioned externally or internally.

external rails
Interior rails

Planed boards:

Select if boards must be planed or not (recommended for furnishing).

Not planed
Planed

Galvanized nails:

Select if nails must be galvanized or not (recommended for furnishing).

Not galvanized
Galvanized

Marking:

Select if boards must be marked or not.

Product measures
Personalised
No markings

Marking Text:

Input the marking text (max 45 characters - special characters are not allowed).

ISPM15:

ISPM15 heat sterilization treatment for exportation to non-EU.

Not treated
Treated

Config Description

Weight:: Kg

Add to Cart

Main manufacturing characteristics:

- Type of material:

- The wooden box is made of European dried fir wood (humidity max 20%);
- Small version: all boards 6x1,2cm;
- Medium version: cover boards 6x1,2cm - pallets and structural boards 9,5x1,5cm;
- Large version: all boards 9,5x1,8cm;
- Extra version: cover boards 9,5x1,8cm - pallets and structural boards 12x2,2cm;
- Extra version - planed: all boards 11,5x1,8cm;
- Planed option is limited to the extra version;

- Size limitations:

- Minimum size: 20cmx10x10h;
- Small version: max 120cmx80x120h;
- Medium version: max 150cmx120x210h;
- Large version: max 350cmx120x210h;
- Large if width > 70cm - max length 200cm;
- Extra: max 490x150x210hcm;
- Extra if width > 100cm - max length 290;

- Cm to be added to the inserted measures to obtain the external measures of the box:

- Small version: length 5cm - width 5cm - height 13cm (if not pallettized height 5cm);
- Medium version: length 6cm - width 6cm - height 13,2cm (if not pallettized height 6cm);
- Large version: length 7cm - width 7cm - height 15cm (if not pallettized height 7cm);
- Extra version: length 9cm - width 9cm - height 16cm (if not pallettized height 9cm);
- Version extra-planed: length 7cm - width 7cm - height 15cm (if not pallettized height 7cm);

- Indicative weight for model 120cmx80x80h:

- Small: 40kg;
- Medium: 50kg;
- Large: 65kg;
- Extra: 65kg;

- Indicative static/dynamic carrying capacity for 120x80cm model:

- Small version: 250 / 150kg;
- Medium version: 500 / 300kg;
- Large version: 800 / 500kg;
- Extra version: 2000 / 1000kg;
- Crates are to be considered not stackable and not superimposable;
- The dimension increase involves more than proportional decrease of the carrying capacity;
- The relative structural rigidity of the contained material, as for example the presence of a bearing metal skid below the product, can also considerably increase the effective range of the carrying capacity;

- ISPM15 treatment for export:

- The treatment is required for export to non-EU countries;
- The treatment consists of high temperature sterilization in an oven;
- The price includes sterilization, markings and documentation stating the treatment;

- Pallet marking:

- Marking by inkjet printing with indelible black ink;
- Maximum 45 characters;
- The wording is not available for sizes smaller than 50cm.

Passa al listino industria

Solo prodotti destinati all'imballo, partita iva, prezzo netto, ordine minimo di 300 Euro

Questions

Send us your question

Cristiana Botta on 05/18/2019	Question: È possibile avere una cassa con coperchio incernierato?
	Answer: E' possibile, con una maggiorazione, indicando la richiesta nelle note dell'ordine (nella pagina della scelta del trasporto). Il sovrapprezzo viene poi comunicato tramite email e pagato successivamente. Consigliamo versioni superiori alla small per agevolare il fissaggio delle cerniere alla cassa.

Nicolò on 07/18/2018	Question: Buongiorno, le casse con base a pallet hanno un lato apribile per scaricare la merce contenuta? Esiste la possibilità di avere una rampa integrata nel coperchio per agevolare lo scarico di strumenti con ruote? Grazie
	Answer: A seconda dell'altezza della cassa sono avvitati il coperchio o il coperchio ed il lato lungo. E' possibile chiedere l'aggiunta di una pedana nelle note in fase di chiusura dell'ordine. Il maggiore costo le viene poi richiesto successivamente.

Nicola Checchi on 08/03/2016	Question: Buongiorno, le casse possono essere utilizzate come sgabelli? riescono a reggere il peso delle persone? grazie e cordiali saluti
	Answer: Certamente. E' consigliata comunque per maggiore sicurezza una resistenza medium, large o extra. E' possibile chiedere nelle note dell'ordine che il coperchio sia realizzato con la listellatura invertita in modo da essere tutto pari per una seduta più comoda.
