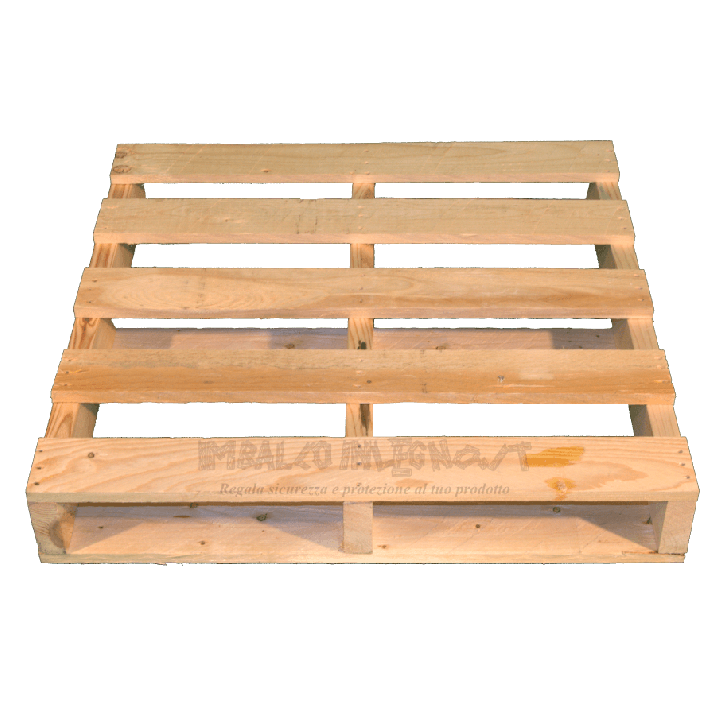

  • Front - Two Way wooden pallet

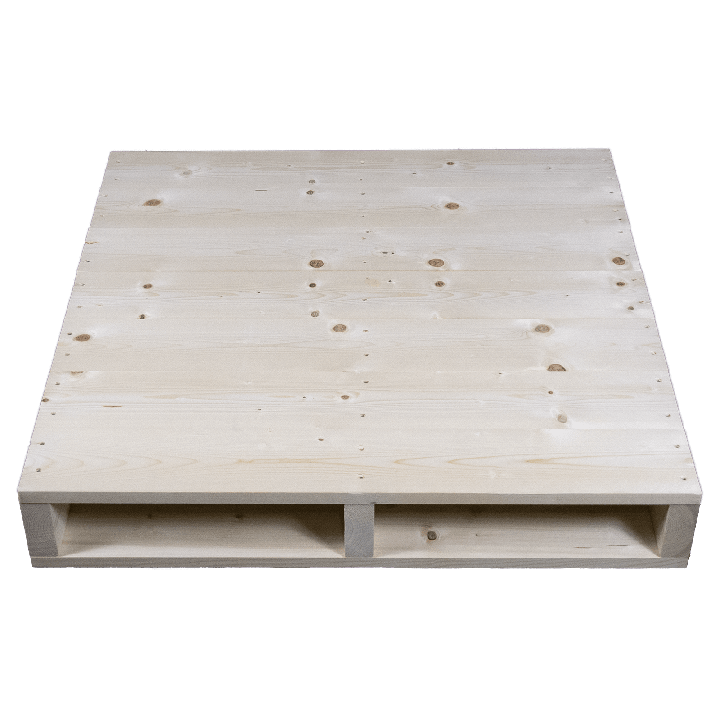

  • Planed front - Two Way wooden pallet

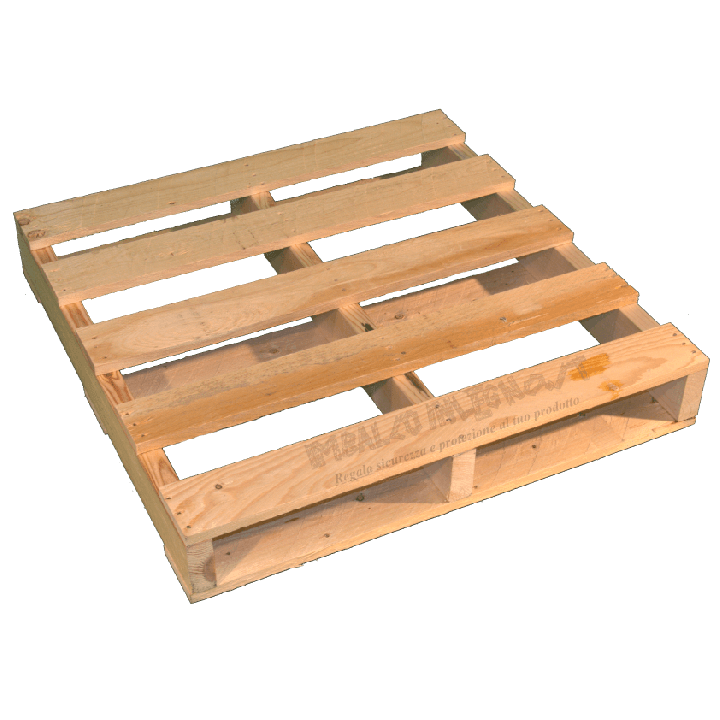

  • Lateral - Two Way wooden pallet

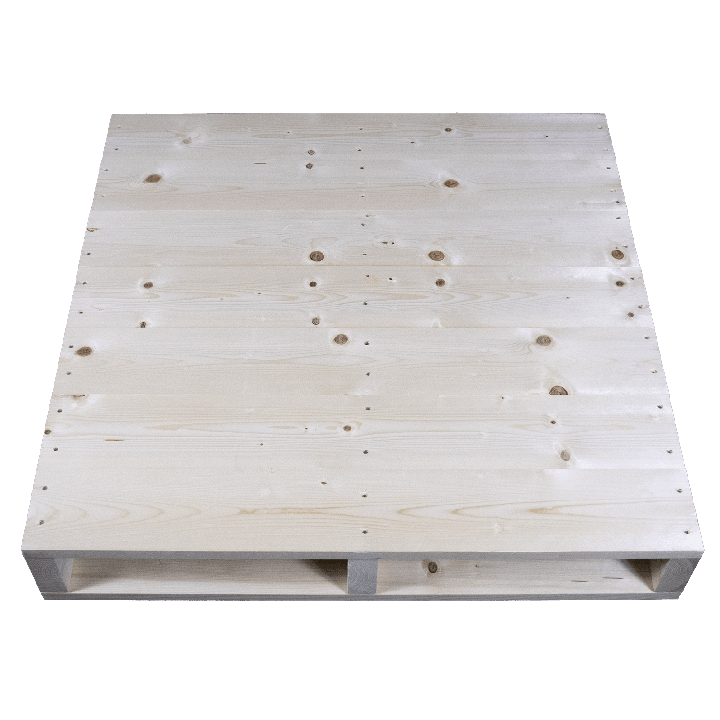

  • High planed front - Two Way wooden pallet

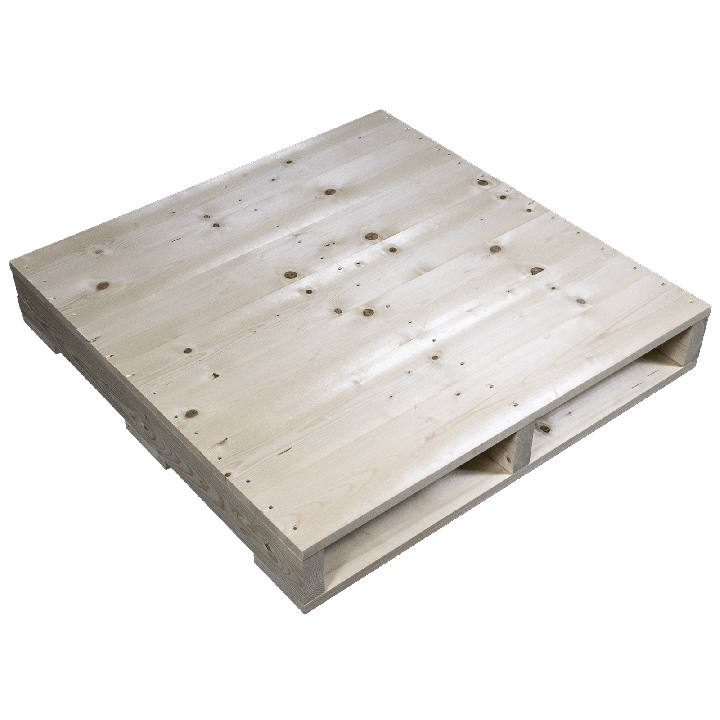

  • Planed side - Two Way wooden pallet

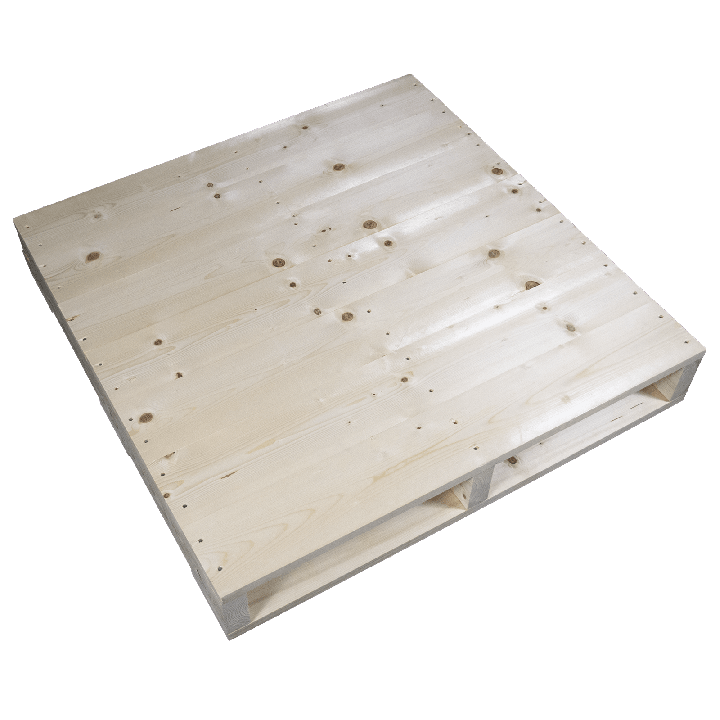

  • Left side planed - Two Way wooden pallet

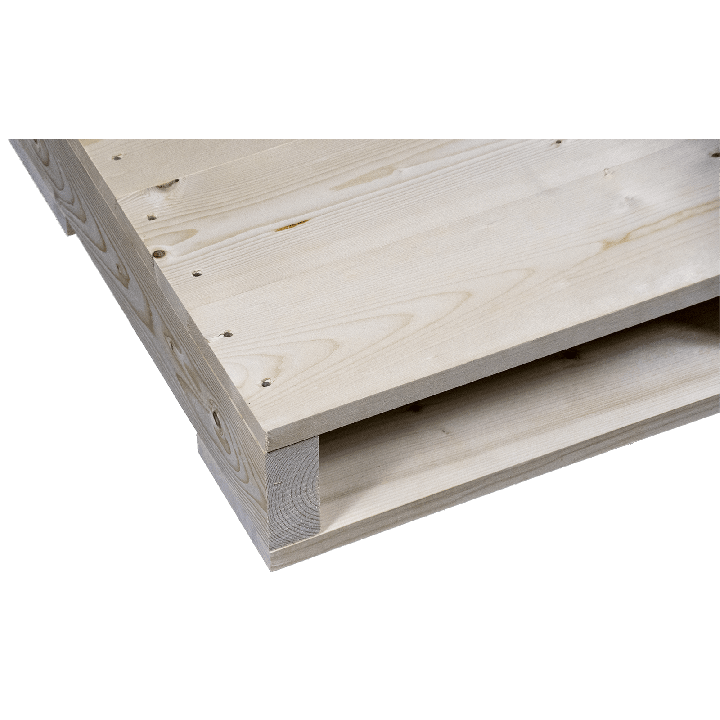

  • Left planed side detail - Two Way wooden pallet

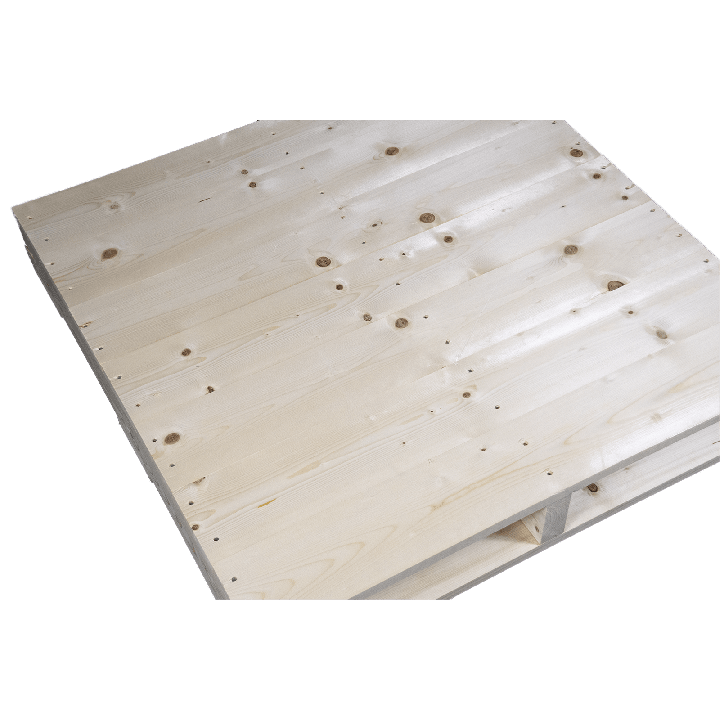

  • From the top left side planed - Two Way wooden pallet

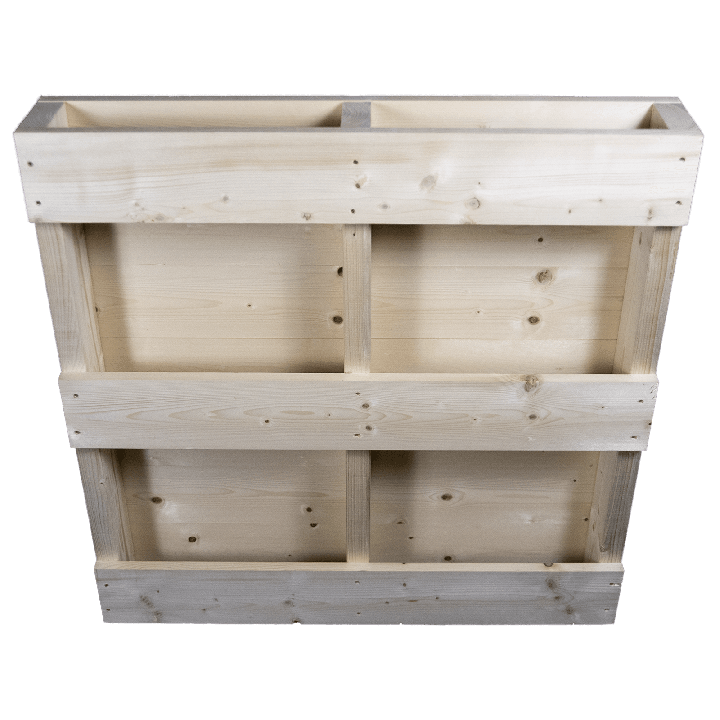

  • Planed back - Two Way wooden pallet

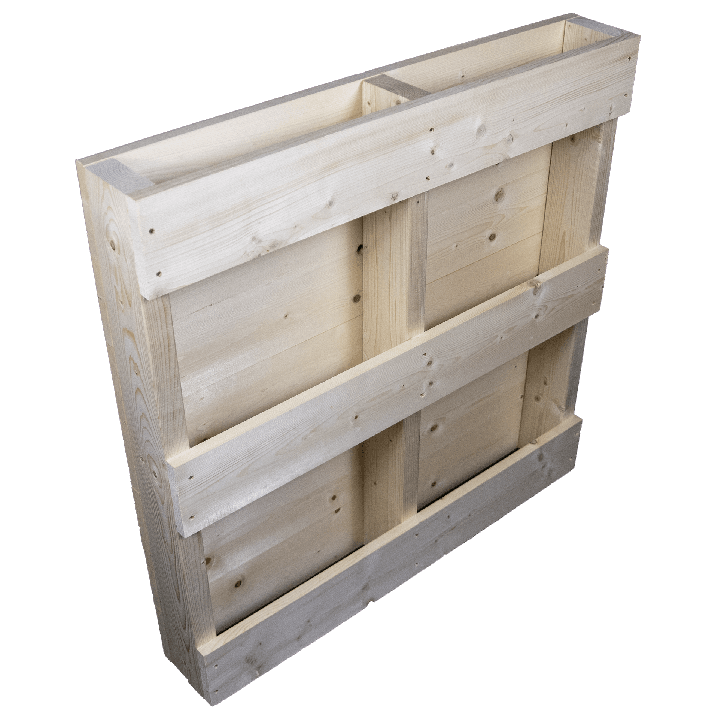

  • Planed side back - Two Way wooden pallet

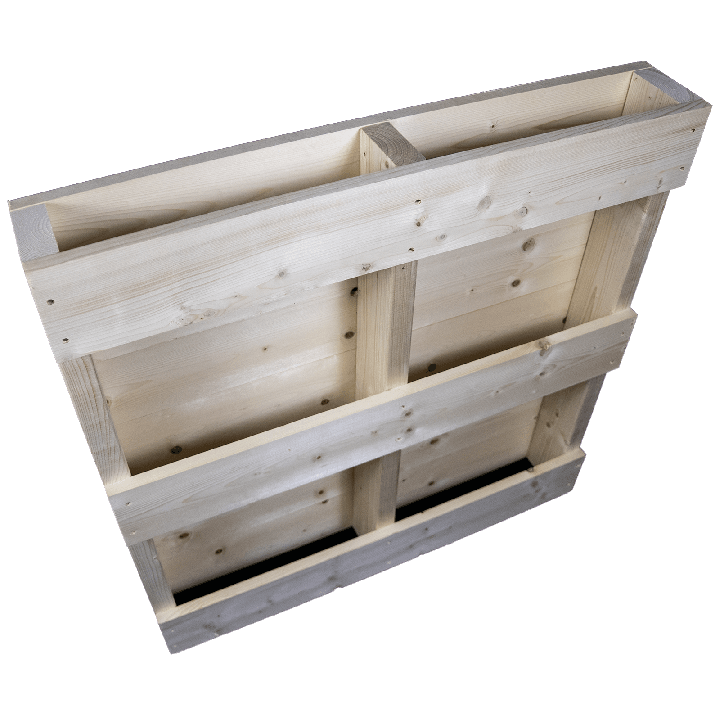

  • Left side back planed - Two Way wooden pallet

Two Way wooden pallet

€19.54
Tax included

Two-way pallets designed to be lifted by the deckboards in customizable sizes.

Quantity

No queries yet, leave the first!
(4,8/5) out of 76 total ratings
Read the reviews

Wooden pallets designed to be lifted by the deckboards, customisable in dimensions (length and width) and strength (small, medium, large, extra), possibility of ispm15 fao treatment for exportation and any indelible black ink markings with a maximum of 45 characters. The pallet can also be realized in a planed version, suitable for furnishing. We produce all pallets we sell.

W-P2VIE
9995819 Items

Download

2vie-ita

Various (strength and dimensions) drawings of 2 way pallets. Italian version.

Download (2.73MB)

2vie-eng

Various (strength and dimensions) drawings of 2 way pallets. English version.

Download (2.7MB)

Product customization:

How to insert the measures properly:

Two Way wooden pallet measures

Enter here the quantity:

(An order of 10 pieces has a discount of 2% - of 50 pieces of 4% - of 100 pieces of 6% - of 200 pieces of 8% - depending on the measures)

Enter here the length:

cm

(Measure must be expressed in cm - min 20cm/max 300cm)

Enter here the width:

cm

(Measure must be expressed in cm - min 10cm/max 235cm)

Strength:

Section of the used material - strenght of the pallet.

Deckboard spacing :

Select if top deckboards must be spaced or not.

cm
Planed boards:

Select if boards must be planed or not (recommended for furnishing).

Galvanized nails:

Select if nails must be galvanized or not (recommended for furnishing).

Marking:

Select if boards must be marked or not.

Marking Text:

Input the marking text (max 45 characters - special characters are not allowed).

cm
ISPM15:

ISPM15 heat sterilization treatment for exportation to non-EU.

Assembled:

Completely finished or with only the six sides preassembled.

Warning: If you select "not assembled", the assembly is carried by the customer!

Main manufacturing characteristics:

- Type of material:

  • - The pallets are made of European dried fir wood (humidity max 20%);
  • - All versions: stringers of 9x3,5cm;
  • - Small version: deckboards  6x1,2cm;
  • - Medium version: deckboards 9,5x1,5cm;
  • - Large version: deckboards 9,5x1,8cm;
  • - Extra version: deckboards 12x2,2cm - if planed of 11,5x1,8cm;
  • - Planed option is limited to the extra version;

- Size limitations:

  • - Minimum size: 20x10cm;
  • - Small version: max 120x80cm;
  • - Medium version: max 160x120cm;
  • - Large version: max 240x235cm;
  • - Extra version: max 300x235cm;

- Pallet height:

  • - Small version: 11.4cm;
  • - Medium version: 12cm;
  • - Large version: 12,6cm;
  • - Extra version: 13,4cm;
  • - Version extra-planed: 12,6cm;

- Indicative weight for model 120x80cm:

  • - Small: 8kg;
  • - Medium: 11kg;
  • - Large: 13kg;
  • - Extra: 16kg;

- indicative static/dynamic carrying capacity for 120x80cm model:

  • - Small version: 250 / 150kg;
  • - Medium version: 600 / 400kg;
  • - Large version: 1200 / 800kg;
  • - Extra version: 2000 / 1500kg;
  • - The dimensions increase involves a decrease more than proportional of the carrying capacity;
  • - The relative structural rigidity of the contained material, as for example the presence of a bearing metal skid below the product, can also increase considerably the effective range of the carrying capacity;

- Size 120x80cm construction:

  • - Small version: 7 top deckboards  - 3 stringer - 3 bottom deckboards;
  • - Medium version: 5 top deckboards - 3 stringer - 3 bottom deckboards;
  • - Large version: 5 top deckboards - 3 stringer - 3 bottom deckboards;
  • - Extra version: 4 top deckboards - 3 stringer - 3 bottom deckboards;

- ISPM15 treatment for export:

  • - The treatment is required to export to non-EU countries;
  • - The treatment consists in an oven high temperature sterilization;
  • - The price includes sterilization, markings and documentation stating the treatment;

- Pallet marking:

  • - Marking by inkjet printing with indelible black ink;
  • - Maximum 45 characters;
  • - The wording is not available for sizes smaller than 50cm.
Only products intended for packaging, VAT number, net price, minimum order of 100 Euros
