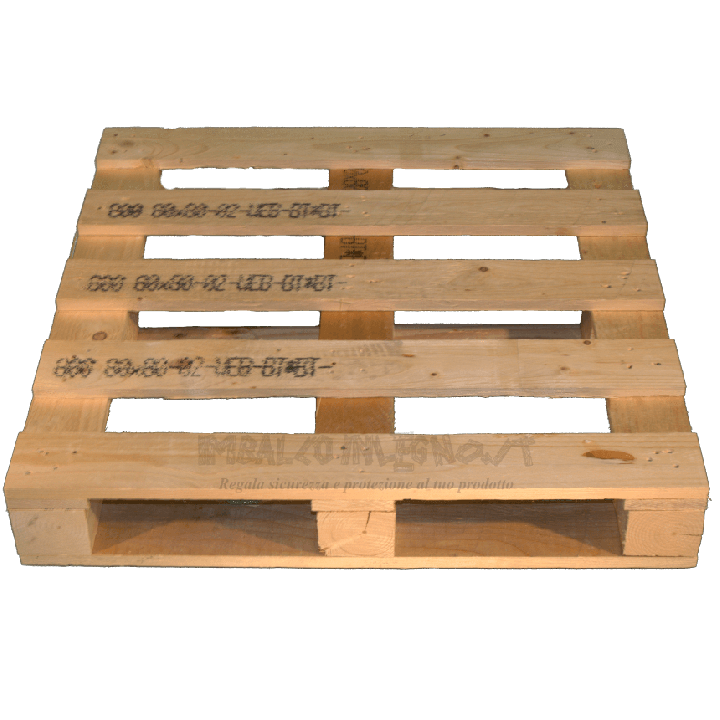

  • Four Way Block wooden pallet - Front

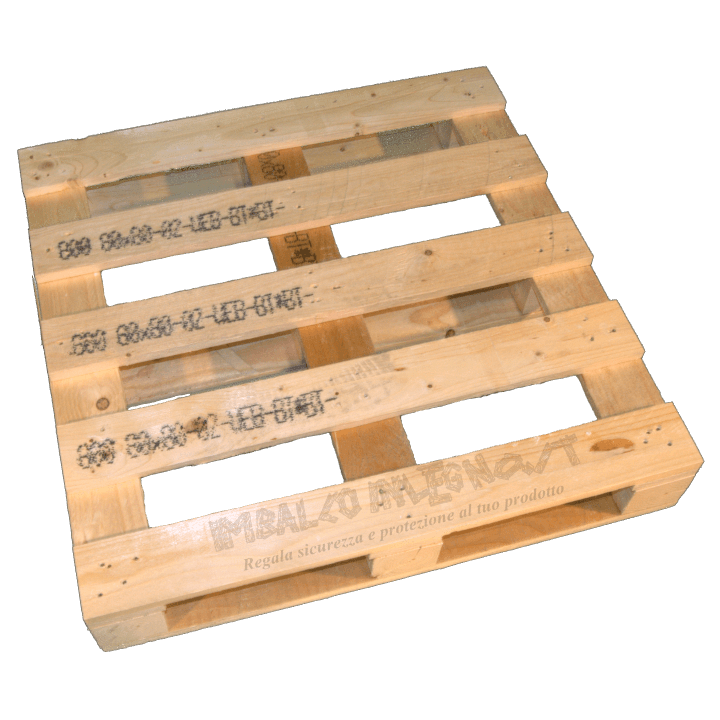

  • Four Way Block wooden pallet - High front

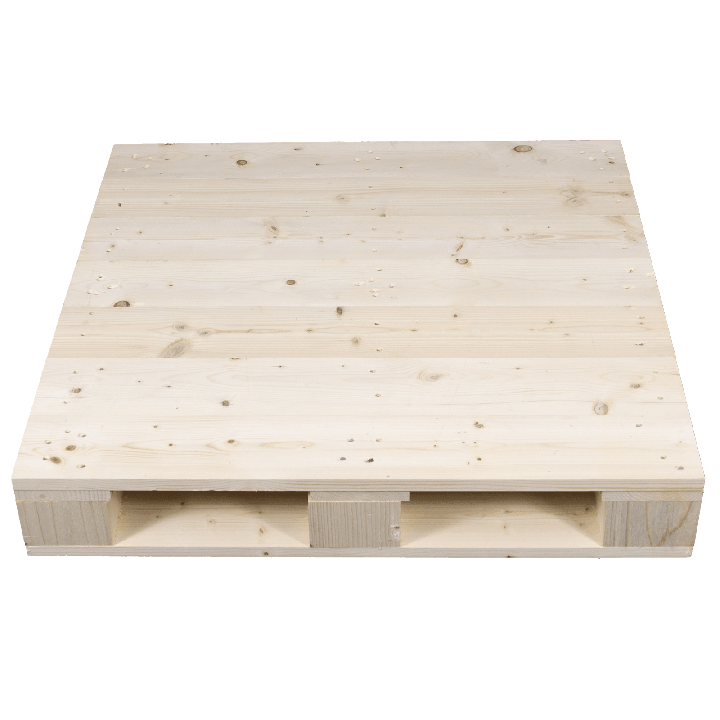

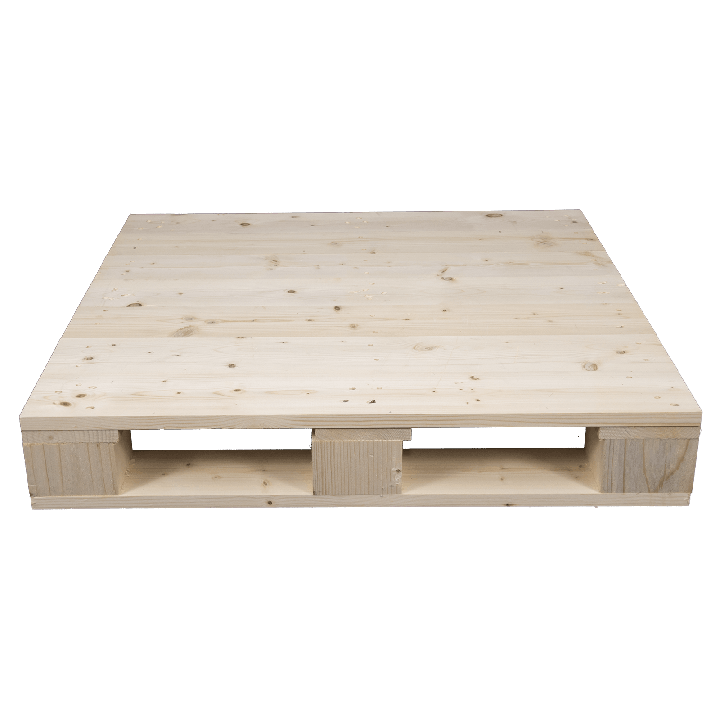

  • Four Way Block wooden pallet - Planed front
  • Four Way Block wooden pallet - Planed front

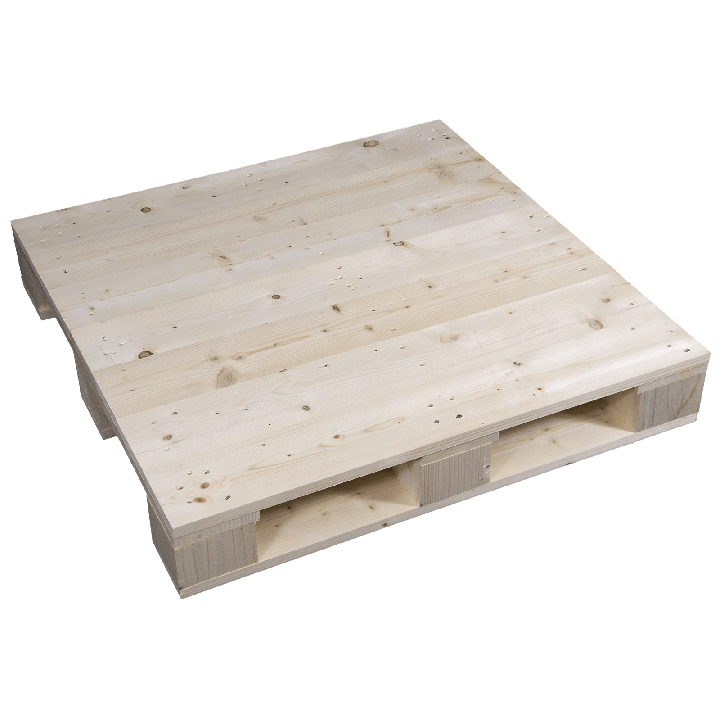

  • Four Way Block wooden pallet - Left side Planed

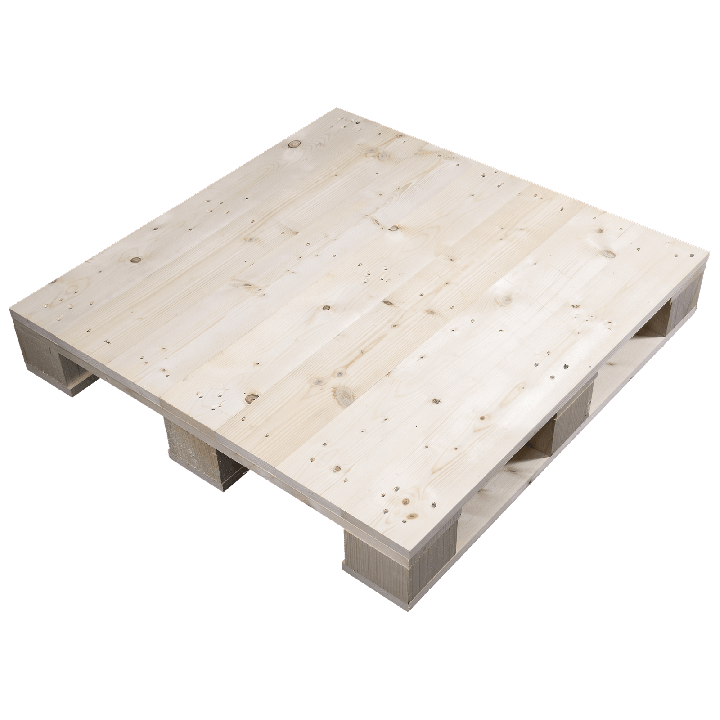

  • Four Way Block wooden pallet - High Planed Side

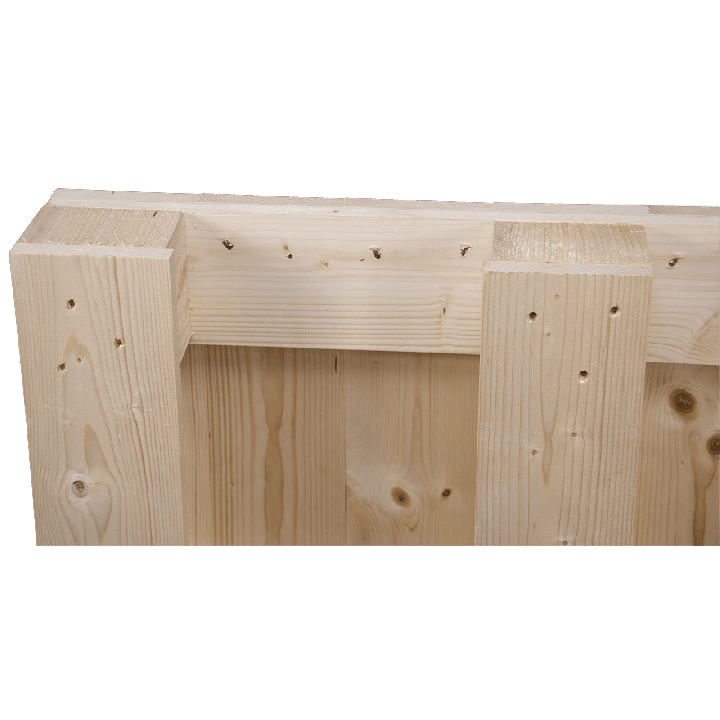

  • Four Way Block wooden pallet - pallet side detail 1

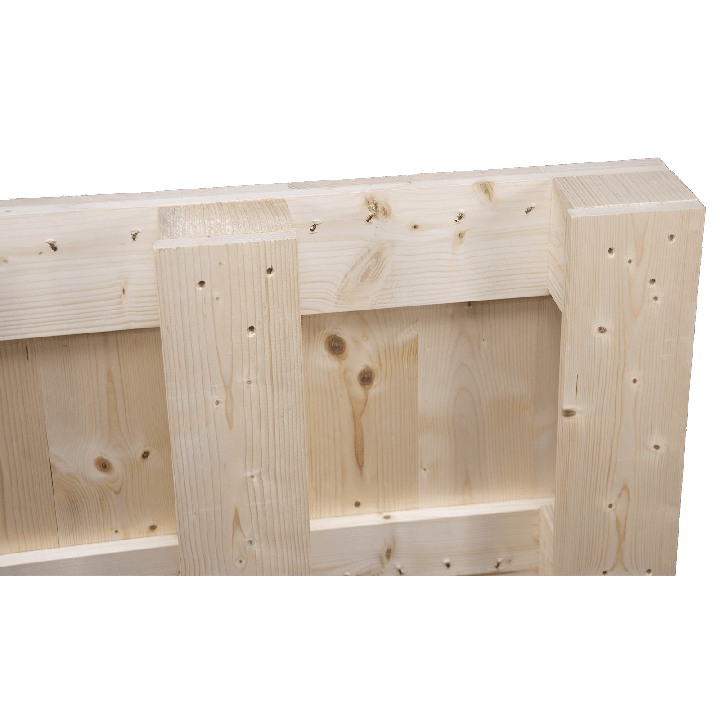

  • Four Way Block wooden pallet - pallet side detail 2

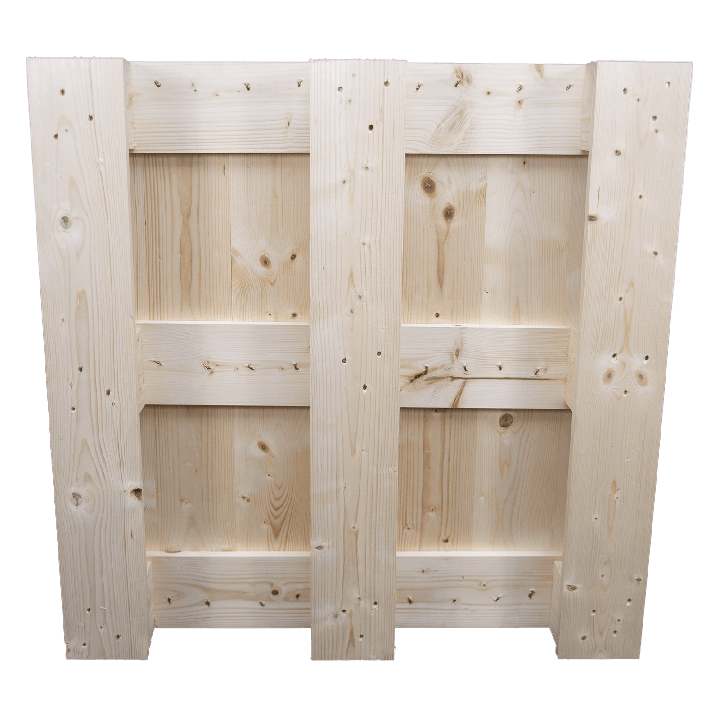

  • Four Way Block wooden pallet - Underside of the pallet

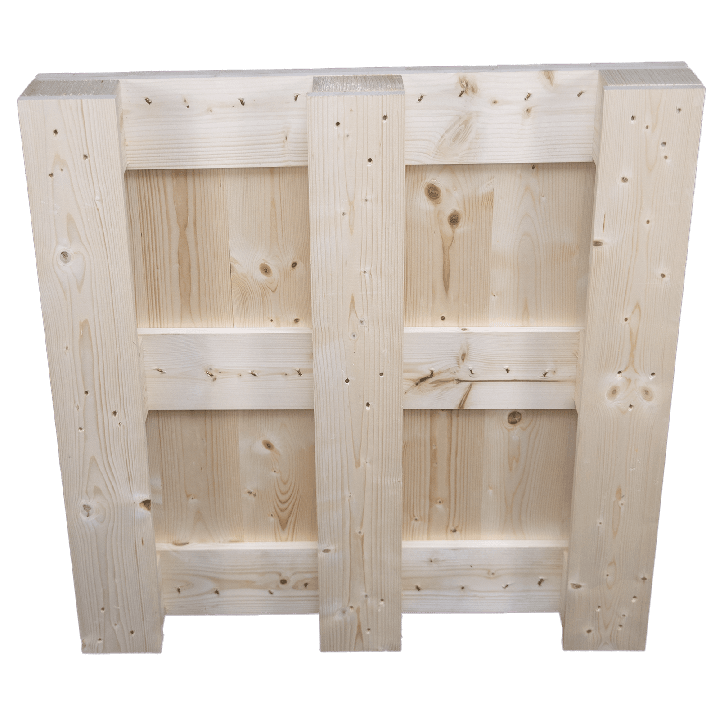

  • Four Way Block wooden pallet - Underside of the pallet 2

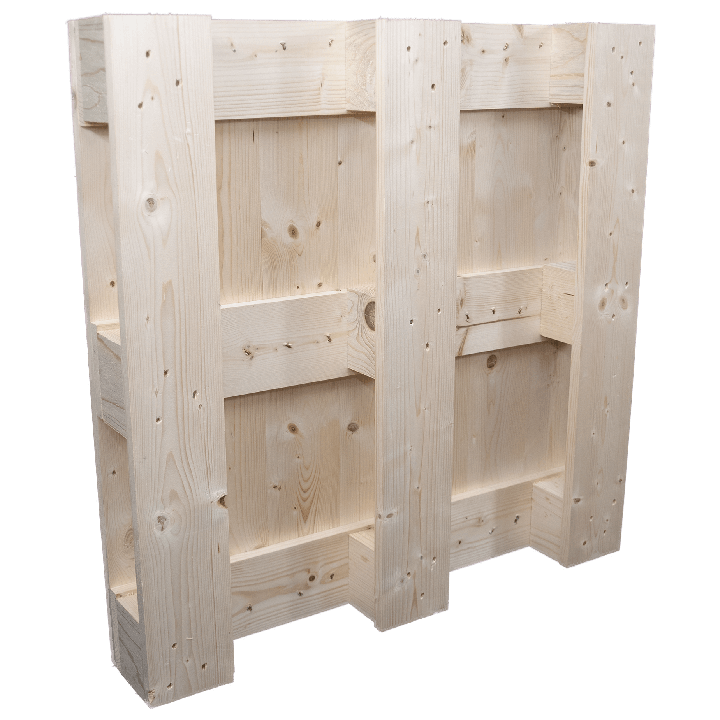

  • Four Way Block wooden pallet - Underside of the pallet 3

Four Way Block wooden pallet

€21.28
Tax included

Four-Way Blockpallets designed to be lifted by the deckboards in customizable sizes.

Quantity

No queries yet, leave the first!
(4,8/5) out of 79 total ratings
Read the reviews

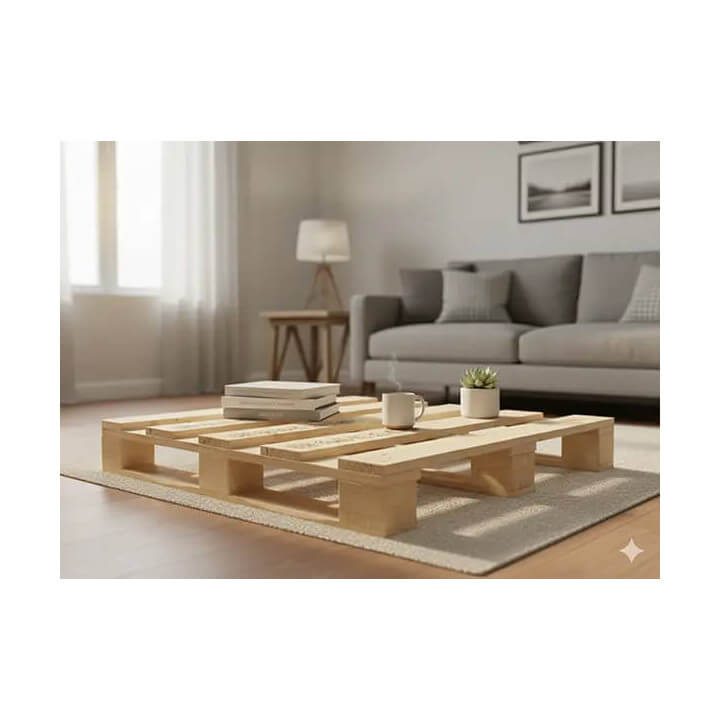

Wooden pallets designed to be lifted by the deckboards on all 4 sides, customisable in dimensions (length and width) and strength (small, medium, large, extra), possibility of ispm15 fao treatment for exportation and any indelible black ink markings with a maximum of 45 characters. The pallet could also be realized in a planed version, suitable for furnishing. We produce all pallets we sell.

W-P4VIE
9997179 Items

Download

4vie-ita

Various (strength and dimensions) drawings of 4way pallets. Italian version.

Download (2.75MB)

4vie-eng

Various (strength and dimensions) drawings of 4way pallets. English version.

Download (2.72MB)

Product customization:

How to insert the measures properly:

Four way pallet measures

Enter here the quantity:

(An order of 10 pieces has a discount of 2% - of 50 pieces of 4% - of 100 pieces of 6% - of 200 pieces of 8% - depending on the measures)

Enter here the length:

cm

(Measure must be expressed in cm - min 30cm/max 300cm)

Enter here the width:

cm

(Measure must be expressed in cm - min 30cm/max 235cm)

Strength:

Section of the used material - strenght of the pallet.

Deckboard spacing :

Select if top deckboards must be spaced or not.

cm
Planed boards:

Select if boards must be planed or not (recommended for furnishing).

Galvanized nails:

Select if nails must be galvanized or not (recommended for furnishing).

Marking:

Select if boards must be marked or not.

Marking Text:

Input the marking text (max 45 characters - special characters are not allowed).

cm
ISPM15:

ISPM15 heat sterilization treatment for exportation to non-EU.

Assembled:

Completely finished or with only the six sides preassembled.

Warning: If you select "not assembled", the assembly is carried by the customer!

Weight:: Kg
Add to Cart

Main manufacturing characteristics:

- Type of material:

  • - The pallets are made of European dried fir wood (humidity max 20%);
  • - Small version: deckboards  6x1,2cm - blocks 6cmx6x7,8h;
  • - Medium version: deckboards 9,5x1,5cm - blocks 9cmx9x7,5h;
  • - Large version: deckboards 9,5x1,8cm - blocks 9cmx9x7,5h;
  • - Extra version: deckboards 12x2,2cm - if planed of 11,5x1,8cm - blocks 11,5cmx11,5x7,5h;
  • - Planed option is limited to the extra version;

- Size limitations:

  • - Minimum size: 30x30cm;
  • - Small version: max 120x80cm;
  • - Medium version: max 160x120cm;
  • - Large version: max 235x235cm;
  • - Extra version: max 300x235cm;

- Pallet height:

  • - Small version: 11,4cm;
  • - Medium version: 12cm;
  • - Large version: 12,9cm;
  • - Extra version: 14,1cm;
  • - Version extra-planed: 12,9cm;

- Indicative weight for model 120x80cm:

  • - Small: 7kg;
  • - Medium: 12kg;
  • - Large: 13kg;
  • - Extra: 19kg;

- indicative static/dynamic carrying capacity for 120x80cm model:

  • - Small version: 250 / 150kg;
  • - Medium version: 500 / 300kg;
  • - Large version: 800 / 500kg;
  • - Extra version: 2000 / 1000kg;
  • - The dimensions increase involves a decrease more than proportional of the carrying capacity;
  • - The relative structural rigidity of the contained material, as for example the presence of a bearing metal skid below the product, can also increase considerably the effective range of the carrying capacity;

- Size 120x80cm construction:

  • - Small version: 7 top deckboards  - 3 stringerboard - 9 blocks - 3 bottom deckboards;
  • - Medium version: 5 top deckboards - 3 stringerboard - 9 blocks - 3 bottom deckboards;
  • - Large version: 5 top deckboards - 3 stringerboard - 9 blocks - 3 bottom deckboards;
  • - Extra version: 4 top deckboards - 3 stringerboard - 9 blocks - 3 bottom deckboards;

- ISPM15 treatment for export:

  • - The treatment is required to export to non-EU countries;
  • - The treatment consists in an oven high temperature sterilization;
  • - The price includes sterilization, markings and documentation stating the treatment;

- Pallet marking:

  • - Marking by inkjet printing with indelible black ink;
  • - Maximum 45 characters;
  • - The wording is not available for sizes smaller than 50cm.
